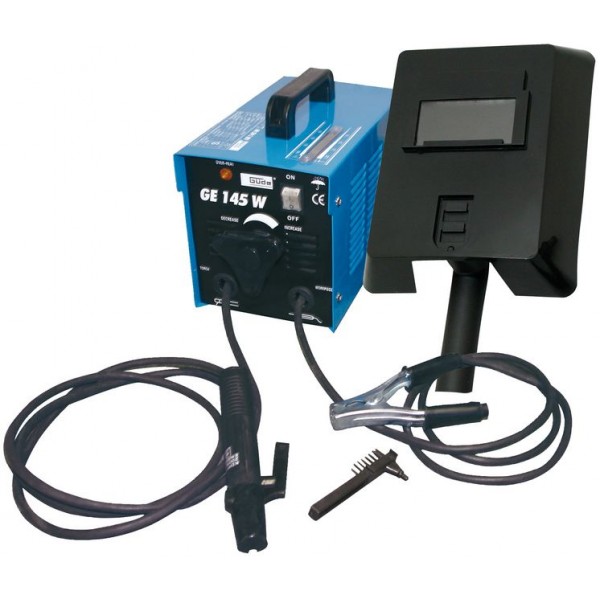

Electrode welder Gude GE 145 W
7 points to the loyalty system
Transformer welder with smooth welding current regulation of 40-100 A and integrated thermal fuse, designed for manual welding with coated electrodes Ø 2 - 3 mm (MMA). Body made of steel sheet (powder-coated surface), thermal overload indication, transport handle.
Equipment: welding cable with electrode holder, grounding cable with grounding clamp, protective welding shield with DIN 11 glass, steel brush/hammer for slag.
Power supply voltage: 230 V~50 Hz
Max. power input: 5 kVA
Min. fuse: 16 A
No-load voltage: 48 V
Recommended material thickness: 1.5 – 4.0 mm
Max. welding current: 100 A
Regulation range (for electrodes Ø 2.0 - 3.0 mm): 10 – 100 A
Duty cycle at max. current: 230 V ~ 20 %
Insulation class: H
Protection type: IP 21 S
Weight: 13 kg
Power supply voltage: 230 V~50 Hz
Max. power input: 5 kVA
Min. fuse: 16 A
No-load voltage: 48 V
Recommended material thickness: 1.5 – 4.0 mm
Max. welding current: 100 A
Regulation range (for electrodes Ø 2.0 - 3.0 mm): 10 – 100 A
Duty cycle at max. current: 230 V ~ 20 %
Insulation class: H
Protection type: IP 21 S
Weight: 13 kg
