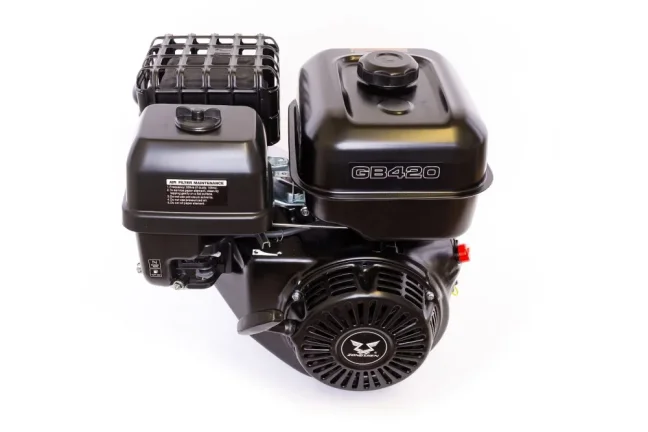

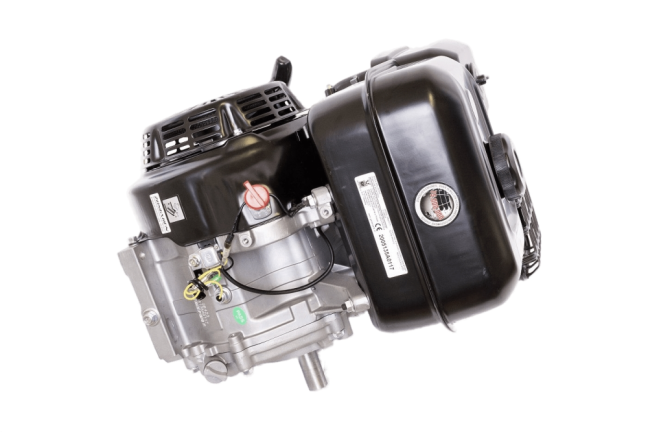

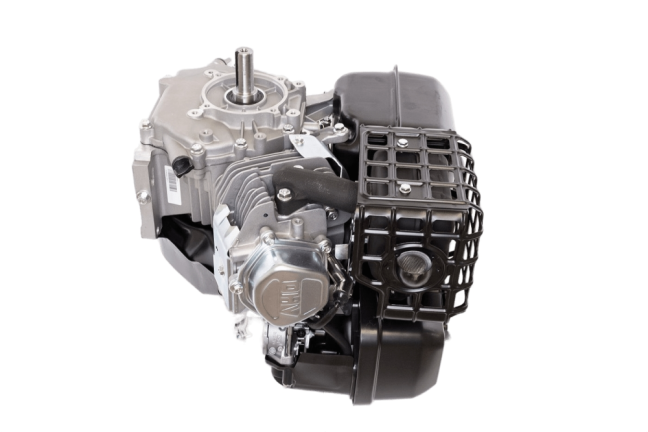

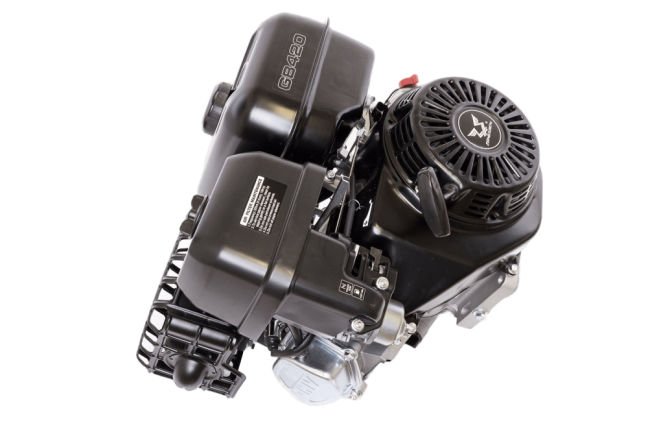

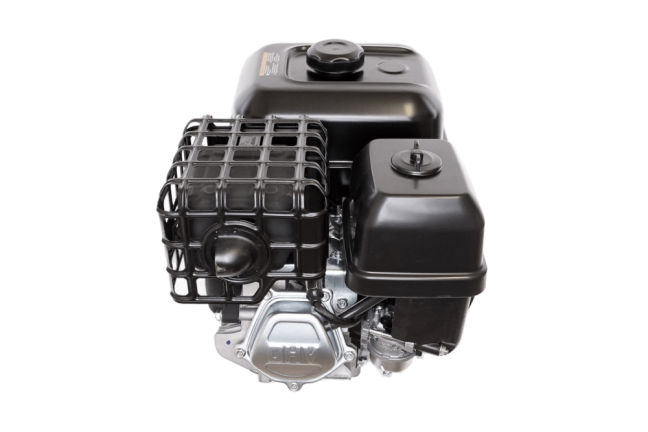

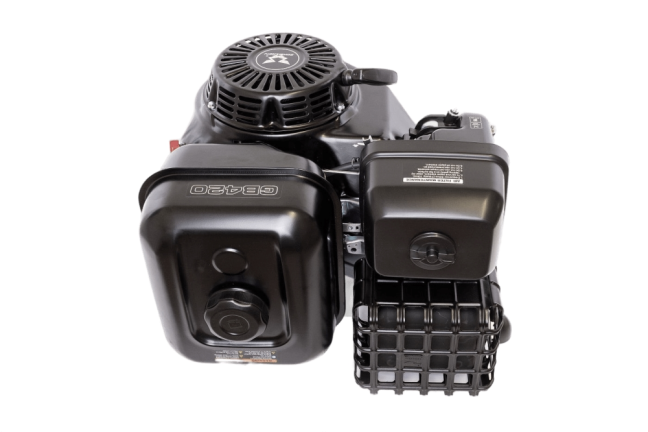

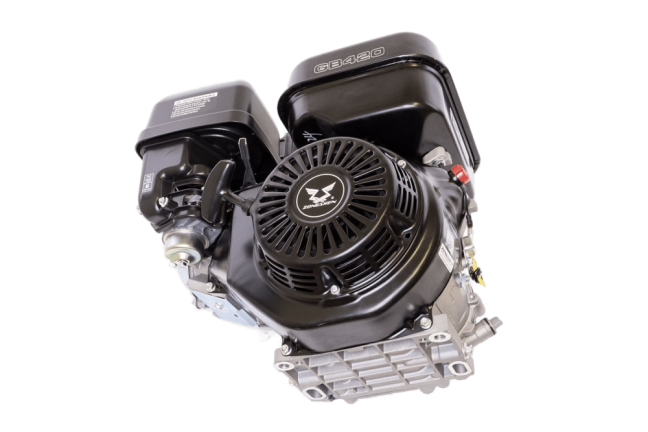

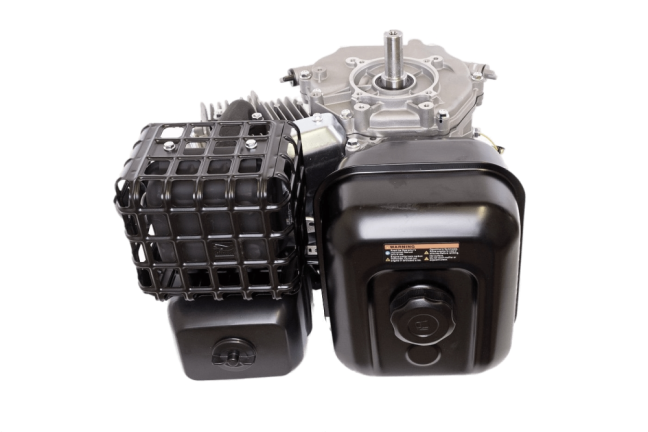

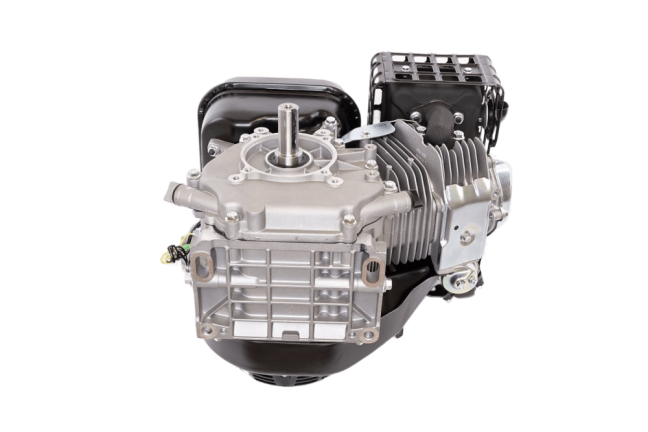

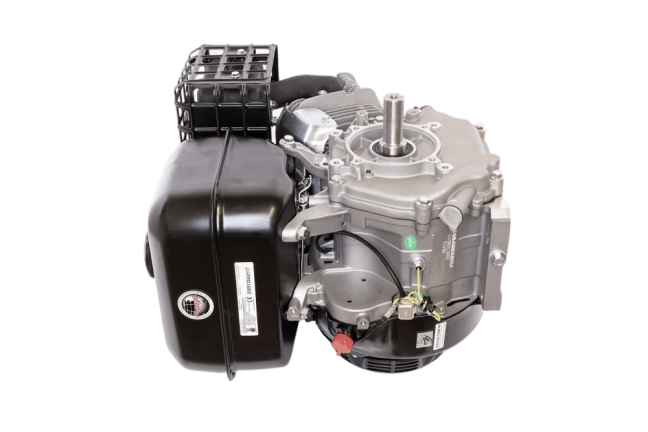

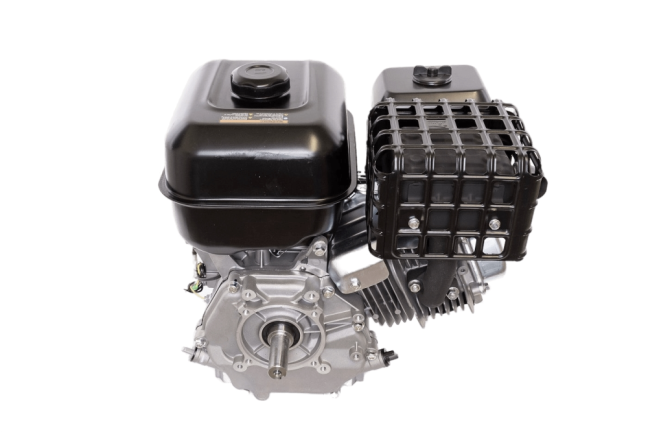

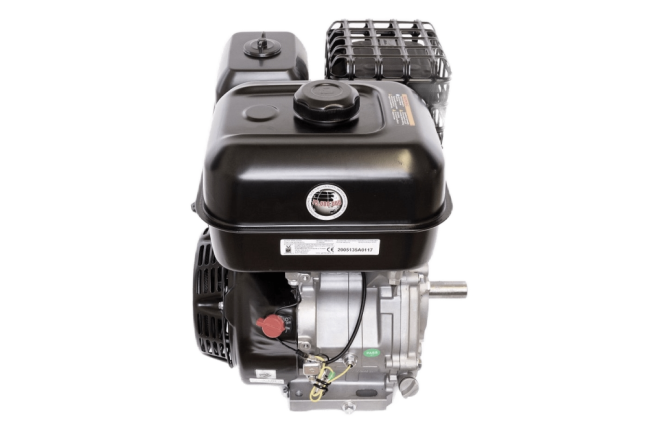

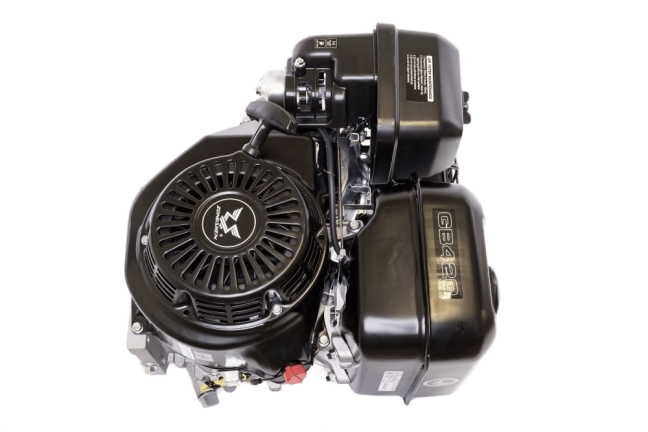

Engine Zongshen GB420 with a power of 13.0 HP and a displacement of 420 cc.

Motor Zongshen GB420 power 13.0 HP engine capacity 420 cc

Attention:

Before the initial operation, it is essential to check the oil level and filters. After the first month or 10 engine hours (whichever comes first), the oil must be changed.

It is advisable to clean the air filters every 3 months or 50 engine hours, as clogged filters can compromise the correct operation of the engine, leading to potential damage and overload.

The spark plug should have a proper gap of 0.6 mm - 0.8 mm.

If the spark plug is fouled with carbon, it should be cleaned mechanically.

We recommend running the engine until the fuel tank is empty before the end of the season to prevent carburetor contamination.

Engine suitable for universal use and soil compaction.

Highly potent engine, recommended for construction companies and regular users.

Overall engine dimensions: 456 x 355 x 459 cm
Shaft length: 60 mm
Shaft length from oil seal: 71 mm
Max. engine speed: 3600 r/min
Engine capacity: 420
Oil capacity: 1.1 L
Fuel tank capacity: 7.5 L
Recommended oil: SAE 10W-30
Fuel: Gasoline 95
Number of cylinders: 1
Crankshaft position: Horizontal
Crankshaft diameter: 25 mm
Cooling system: Air-cooled
Starting: Manual start
Torque: 27 N.m
Lubrication type: Spray
Weight: 30.5 kg
Valve distribution: OHV
Idle engine speed: 1650±150 r/min
Cylinder bore: 90 x 66 mm
Engine power: 12.5 HP
Engine power Kw: 9 Kw
