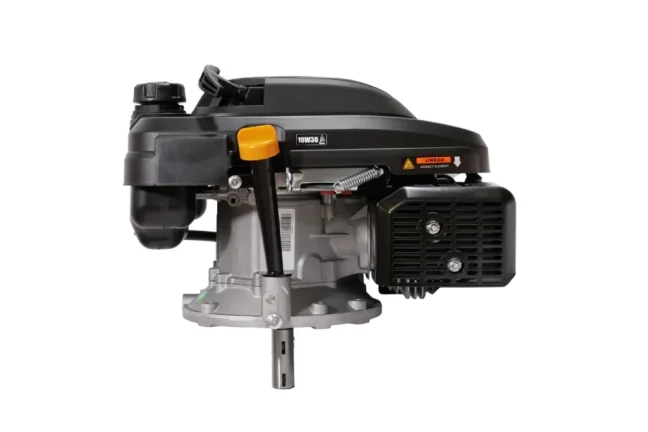

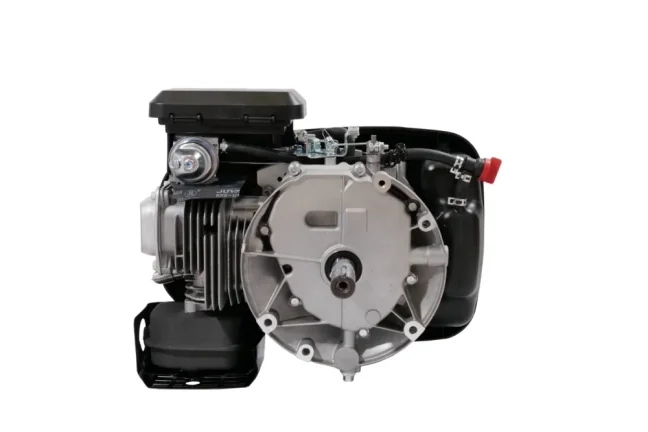

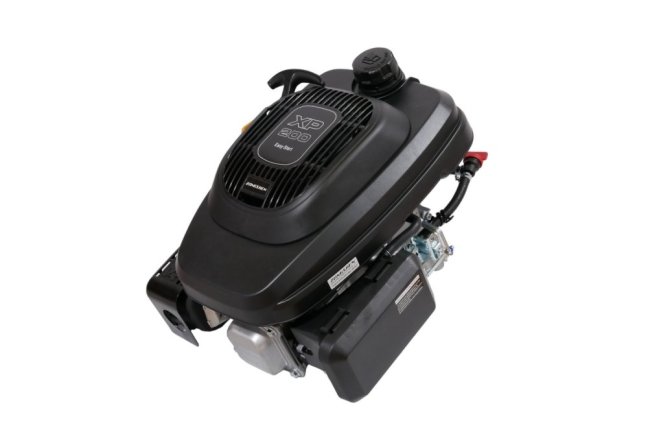

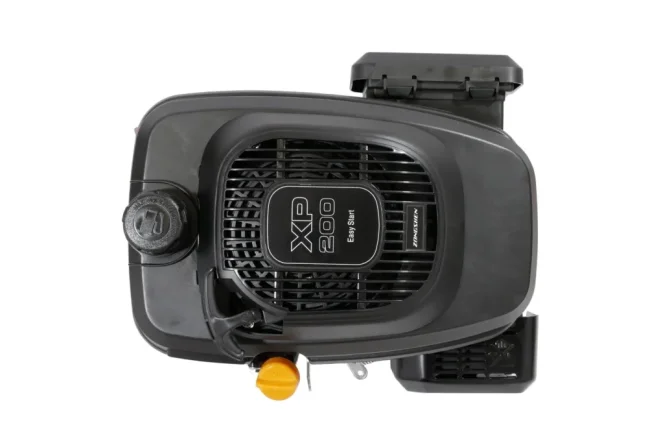

Engine Zongshen XP200A with a power of 6.5 HP and a displacement of 196 cc, vertical shaft.

Engine Zongshen XP200A with a power of 6.5 HP, engine displacement 196 cc with an automatic choke. Engine Zongshen XP200A replaces Honda, Loncin, Lifan, Rato, and other brands of engines.
Attention: Before the first operation, it is necessary to check the oil level and filters. After the first month or 10 engine hours (whichever comes first), it is necessary to change the oil.
Every 3 months or 50 engine hours, it is advisable to clean the air filters, clogged filters do not ensure proper engine operation, risking damage and overload.
The spark plug should have a correct gap of 0.6 mm - 0.8 mm.
If the spark plug is fouled with carbon, it needs to be cleaned mechanically.
We recommend always leaving the engine running at the end of the season until all the contents of the fuel tank are used up, preventing carburetor contamination.

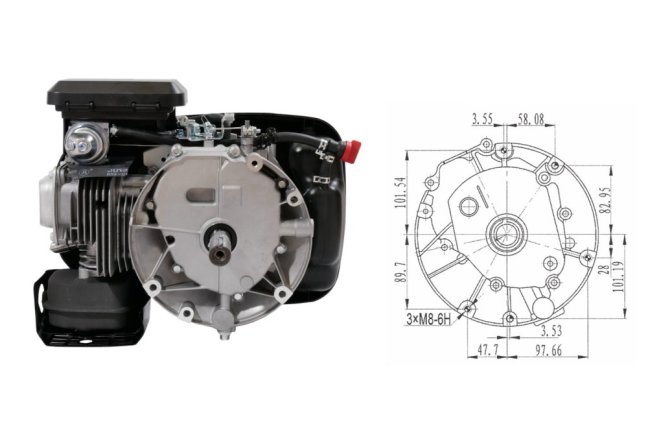

This engine has a vertical shaft with the following dimensions:
Engine for lawn mowers.

Overall engine dimensions: 415 x 340 x 270 cm
Shaft length: 70 mm
Shaft length from oil seal: 84 mm
Max. engine speed: 3800 r/min
Engine displacement: 196 cc
Oil capacity: 0.6 L
Fuel tank capacity: 1.4 L
Recommended oil: SAE 10W-30
Fuel: Gasoline 95
Number of cylinders: 1
Crankshaft position: Vertical
Crankshaft diameter: 25 mm
Cooling system: Air-cooled
Starting: Manual start
Torque: 10 N.m
Lubrication type: Splash
Weight: 11 kg
Valve train: OHV
Idle speed: 1800±200 r/min
Cylinder bore: 70 x 51 mm
Engine power: 6.5 HP
Engine power Kw: 4.8 Kw
Manufacturer: Zongshen
Application: Lawn mower
