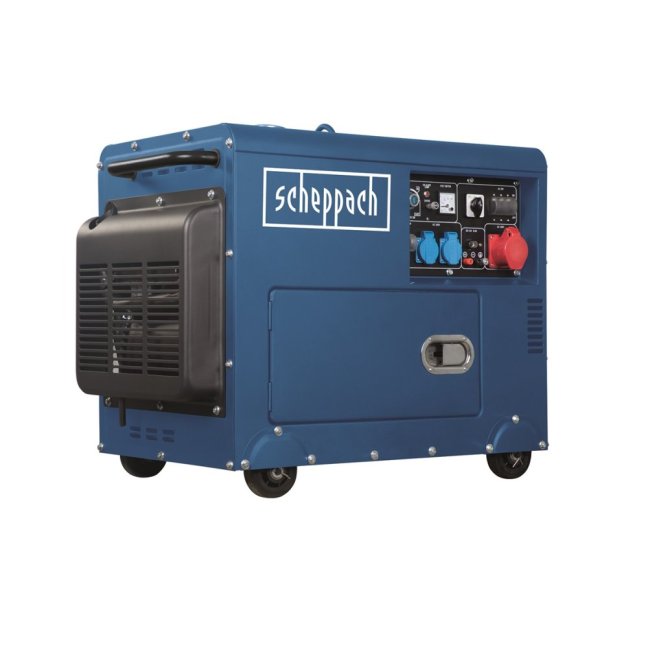

Diesel Power Generator 5,000 W SCHEPPACH SG 5200 D

177 points to the loyalty system

Price
1 779 € incl. VAT

Manufacturer

Product code
5906222903

EAN
4046664095583

In stock
ks

WITH AVR REGULATION More

The robust diesel power generator Scheppach SG 5200 is a very efficient solution thanks to its very low fuel consumption, especially during long power outages. It proves useful where access to the power grid is not guaranteed or where there is a risk of significant material losses during power outages. These can be family houses, craft workshops, individual business operations, construction sites, and more. The power generator, with its output and a large number of different outputs (12V/2x 230V/400V), has a very solid range of applications. With a continuous power of up to 4200W, users can power not only resistive-type electrical appliances (light bulbs, heating elements, coffee makers, etc.) but also a wide range of inductive-type electrical appliances, where a larger power reserve is necessary due to the starting and operating losses in the motor winding (handheld power tools, electric pumps, machines with larger electric motors, etc.). The key elements for the quality of the power generator are the motor and alternator. Scheppach uses only certified motors and alternators tested in long-term load tests under continuous operation. Additionally, the power generator is equipped with top-quality power supply with Automatic Voltage Regulator (AVR), ensuring that even appliances demanding high-quality power supply are not damaged. The large 16-liter tank allows users to operate the generator carefree for many hours. The 4 wheels and transport handles significantly facilitate the machine's transportation.
Engine Type diesel, 1-cylinder, 4-stroke, air-cooled
Engine Displacement (cc) 418
Engine Power - Maximum (kW/HP) 5.7 / 7.7
Starting System electric start
Fuel diesel
Fuel Tank Capacity (l) 16
Fuel Consumption (central) (l/h) 1.43
Operating Time on Tank (h) 11
Power Regulation automatic AVR
Power (max./continuous) - generator (kW) 5.0/4.2 (400V), 3.3/3.0 (230V)
Output Voltage 400V, 2 x 230V, 12V DC
Output Frequency (Hz) 50
Overload Protection year
Oil Shortage Protection year
Voltmeter year
Protection Class IP 23
Weight (Kg): 148.00
Dimensions (cm): 92 x 52 x 75
Packaging Dimensions (cm): 93.5 x 71 x 53.5
Item No.: 5906222903
