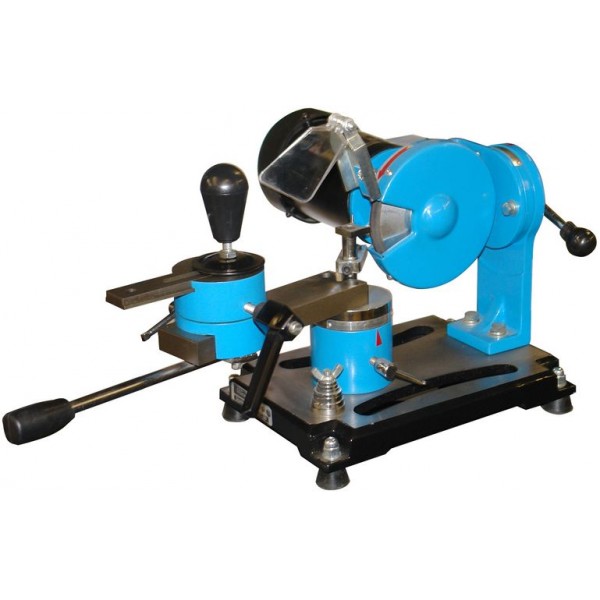

Ostrovačka pre kruhové píly GUDE GSS 500

Robust grinding machine for saw blades, designed for precise grinding/sharpening of all commonly used types of discs with an outer diameter of Ø 80 - 500 mm (especially hand-held circular/table disc/circular saw blades, etc.) in workshop and specialized operations (dry grinding method). Grinding of the face/back of saw teeth thanks to a combination of a rotating clamping table (30° left - 80° right in the horizontal plane)/adjustable grinding head (with adjustable lateral tilting of +/- 30°), several holes for fixing saw discs of various outer diameters, depth stop of the grinding disc, disc support screw, feeding slides for precise guidance of the saw disc during sharpening. 150 W motor, steel sharpener body, side cover of the disc/transparent guard as a guarantee of safe operation with the grinder, switch in a protective casing, grinding disc 125 x 30 x 10 mm, adapters for various inner Ø of discs (7), base part with holes (4) for fixed mounting.
Noise level LWA: 85 dB (A)
Overall dimensions: 570 x 380 x 300 mm
Connection: 230 V~50 Hz
Motor power: 150 W
No-load speed: 2800 min-1
Grinding disc: 125 x 30 x 10 mm
Grinding disc adjustment angle: +/- 30°
Adapters for disc clamping: 16-18-20-25-25.4-28-30 mm
Weight: 18.4 kg
