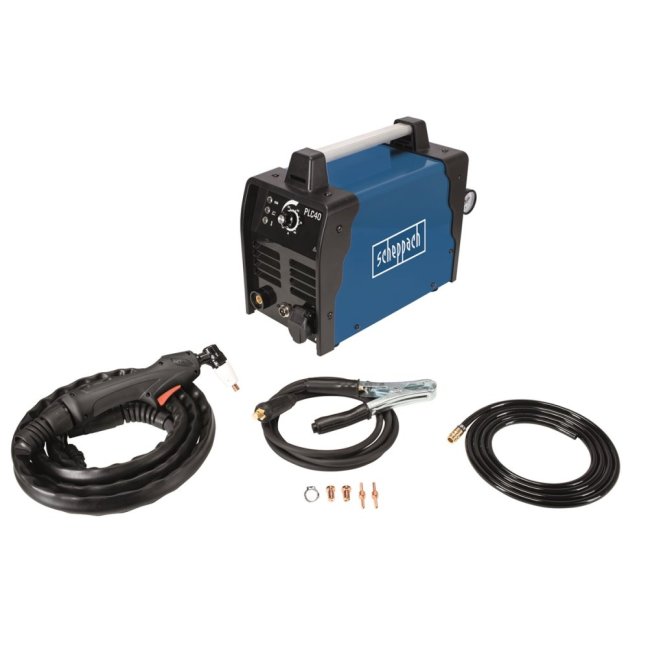

The Scheppach PLC 40 plasma cutter is a powerful yet compact machine designed for cutting iron, stainless steel, steel sheet, aluminum, or copper up to a thickness of 12 mm. Thanks to the electronically adjustable, quiet, and precise plasma beam, it can make precise and clean straight or curved cuts in metal materials. The cutter has a smoothly adjustable cutting current in the range of 15-40 A, overload protection with optical control using an LED diode, a quality cutting cable 2.5 m long with interchangeable nozzles, a grounding cable 2 m long with a very strong clamp, a quality air pressure hose 2 m long, connection to compressed air with a reducing valve and pressure gauge, durable steel body, and a comfortable handle for easy transport. The package also includes 3 nozzles and 3 electrodes. The device can be used with standard compressors meeting the relevant performance parameters.
Technical Parameters
| Motor Type |
230 V, 50 Hz |
| Cutting Current (A): |
adjustable, 15-40 |
| Cutting Thickness Steel (mm): |
1-12 |
| Cutting Thickness Iron (mm): |
1-8 |
| Cutting Thickness Stainless Steel (mm): |
1-8 |
| Cutting Thickness Aluminum (mm): |
1-8 |
| Cutting Thickness Copper (mm): |
1-4 |
| Working Pressure (max.) (bar): |
4-4.5 |
| Cutting Cable (m): |
2.5 |
| Grounding Cable (m): |
2 |
| Air Hose |
Yes |
