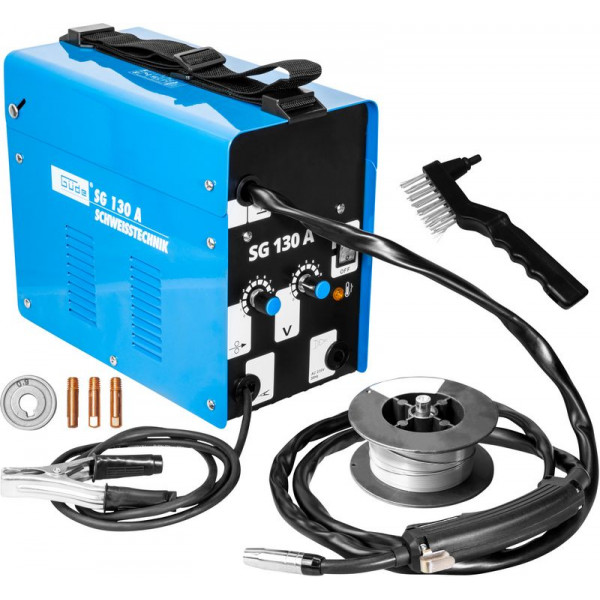

Welder GUDE SG 130 A

Welder for welding filled tubular wire up to 0.9 mm thickness. Body made of steel sheet coated with powder paint, protection against thermal overload, cooling fan, forced cooling. Duty cycle at maximum welding current 230V: 10%. Continuously adjustable current intensity (60 – 120 A). Welding shield (DIN 11), grounding cable with grounding clamp, hose guide with direct connection, wire brush. Includes filled wire (0.9 mm/0.25 kg).

Input voltage: 230 V
Frequency: 50 Hz
Protection class (IP): 21S
Insulation class: H
Max power at 230V: 3.9 kVA
Back-up fuse: 16 A
Open circuit voltage: 32 V
Max welding current at 230V: 120 A
Welding current regulation range: 60 – 120 A
Number of switching levels: stepless
Switching time at maximum current 230V: 120 ~ 10 A ~ %
Recommended material thickness for welding: 1.5 – 5 mm
Dimensions (LxWxH): 350 x 190 x 320 mm
Net/gross weight: 13.1 kg/17 kg
