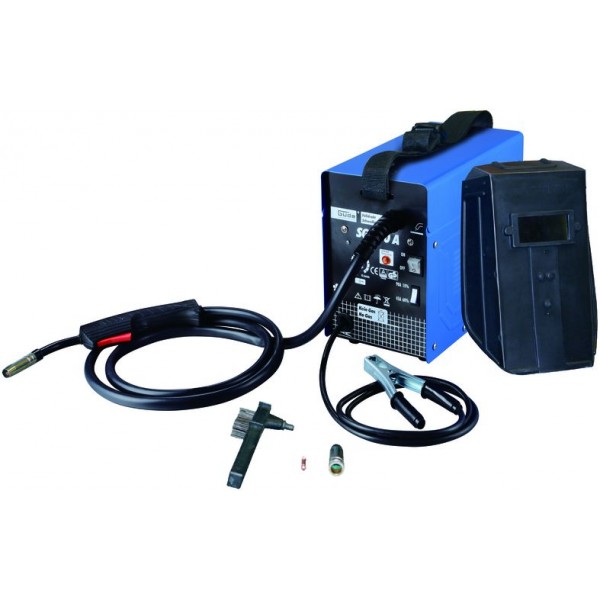

Welder GUDE SG 120A
13 points to the loyalty system
Transformer welder with dual current switching (45 A/95 A) and a fan, designed for welding with filled tubular wire up to Ø 0.9 mm (coils of 0.2 – 0.4 kg). Made of steel sheet (powder-coated surface), wire feed speed adjustment, thermal overload protection with indication, shoulder strap.
Equipment: welding hose, grounding cable with grounding clamp, protective welding shield with DIN 11 glass, steel brush/hammer for slag.
Power supply voltage: 230 V~50 Hz
Max. power: 3.2 kVA
Min. fuse: 16 A
No-load voltage: 31 V
Recommended material thickness: 1.5 – 5.0 mm
Switching stages (2): 45 A / 95 A
Switch-on time at max. current: 90 A ~ 10% / 45 A ~ 60%
Insulation class: H
Protection type: IP 21 S
Weight: 13.8 kg
Power supply voltage: 230 V~50 Hz
Max. power: 3.2 kVA
Min. fuse: 16 A
No-load voltage: 31 V
Recommended material thickness: 1.5 – 5.0 mm
Switching stages (2): 45 A / 95 A
Switch-on time at max. current: 90 A ~ 10% / 45 A ~ 60%
Insulation class: H
Protection type: IP 21 S
Weight: 13.8 kg
